The Subsite® TK RECON Series HDD Guidance System features proven TK
performance with dual locating methods (walkover and Drill-To™), making
it easy for experienced and novice operators alike.

The TK RECON even lets you map your bore using GPS. With a depth range of up
to 110 feet (33.5 m) and features including improved radio performance with
increased interference immunity and faster information transfer, you can be
more productive and efficient on every jobsite.

Learn More


The Subsite® TK RECON Repeater is a performance-boosting addition to our
proven TK RECON Series HDD Guidance System.

The TK RECON Repeater reliably creates better lines of sight and substantially
extends the telemetry range of your tracker. The user-friendly Repeater features
simple, single-button operation, more than 50 hours of continuous run time, and
a convenient freestanding, portable design.

Learn More



The Subsite® Commander 7 HDD Guidance Display is our most advanced display
ever, delivering vital tracking data to both the tracker operator and the drill

Offering enhanced capabilities to the TK RECON™ Series HDD Guidance System, the
Commander 7 is compatible with both Apple® iOS and Android™ devices and features
an expanded communication range, faster data rate speeds and a high-resolution
7-inch screen. Commander 7 even offers users three ways to view their tracker data
for a more user-friendly, more productive operator experience.

Learn More

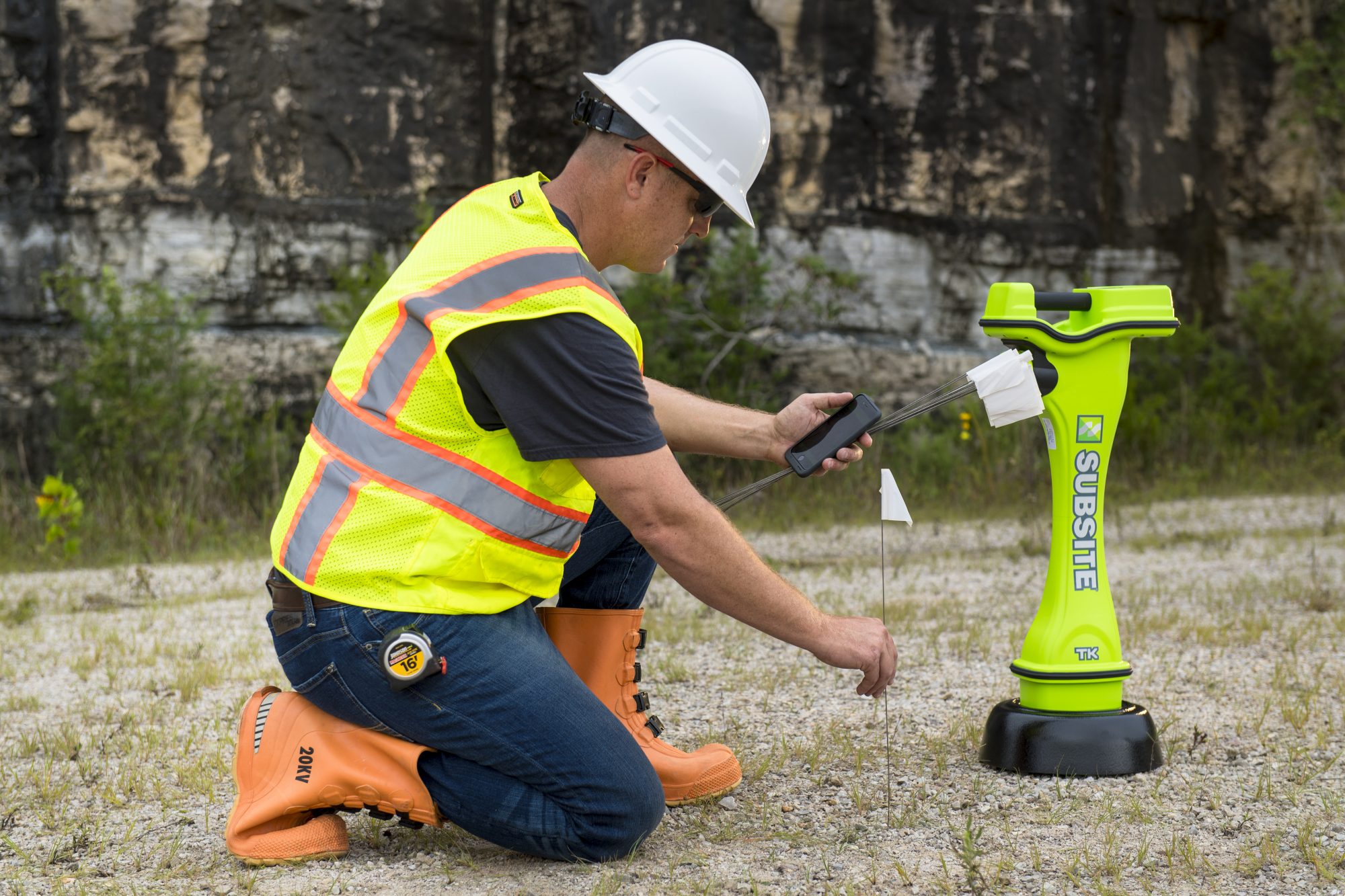

The Subsite® Field Scout app works with your Apple® or Android™ mobile
device, allowing you to walk the intended bore path of your next job
and record important waypoints and obstacles such as the entry pit,
exit pit, and utility crossings.

Field Scout reduces the chance of errors by replacing pad and paper, and by giving
you the ability to use GPS. Transcription errors are also minimized as Field Scout
lets you share your plan electronically. From Field Scout, you can email your plan
to a supervisor, owner, or client for approval or further action. You can send it
to crew members to show what daylighting needs to be done. Best of all, you can
upload your plan to the Commander™ 7 HDD Guidance Display with ScoutView™ for
reference while boring. Planning with Field Scout can reduce your risk and make
your drill time more efficient, improving profitability on every bore.

Learn More


ScoutView is a productivity-boosting software for the Commander 7 HDD
Guidance Display.

With ScoutView, you can upload your Field Scout™ bore plan to the Commander 7
screen and monitor the bore in real time. In addition, it enables you to log bore
data and display bore info when approaching a waypoint/obstacle—all from the drill
seat during the bore.

When the bore is complete, you can use Field Scout to download the completed bore
to your mobile device, where you can email your plan and As-Built to a supervisor,
owner, or client for approval or further action. With ScoutView, you can reduce your
risk and make your drill time more efficient, improving profitability on every bore.

Learn More


Subsite® Electronics offers a complete line of versatile, money-saving HDD
Beacons (sondes) with the best warranty in the industry—3 years/750 hours
(whichever comes first).

The new 15T, 17T and 19T beacons are available in one, three or four frequencies
and deliver the versatility of three field-configurable power levels plus automatic
tuning circuitry that adjusts to match the housing the operator is using. All Subsite
HDD beacons are repairable—an industry exclusive—giving you substantial savings
over beacon replacement costs.

Learn More


Planning a bore in advance saves time, money, and reduces complications.

With Subsite® Electronics TMS Plus, a Windows®-based management tool, you can
plan the bore, monitor its real-time progress, and print out a completed survey
or As-Built map when you’re done. TMS Plus lets you manage your jobs more
efficiently, so you can be more productive on every jobsite and more profitable
throughout the year.

Learn More


With our TSR Mobile (Tracking Status and Reporting) As-Built Software, you can
download HDD bore information directly to your mobile phone, tablet or computer.

By replacing the manual bore log, TSR Mobile speeds production and reduces logging
errors. Plus, TSR Mobile allows drill operators to generate an As-Built report as
soon as the pilot bore is completed,right from the field.

Learn More
