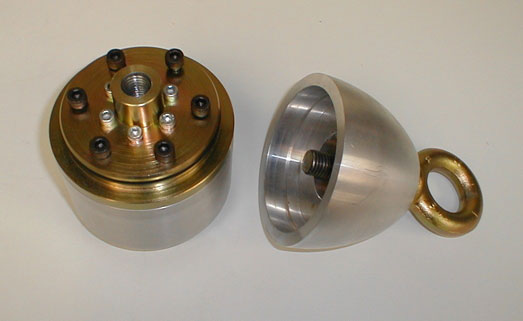

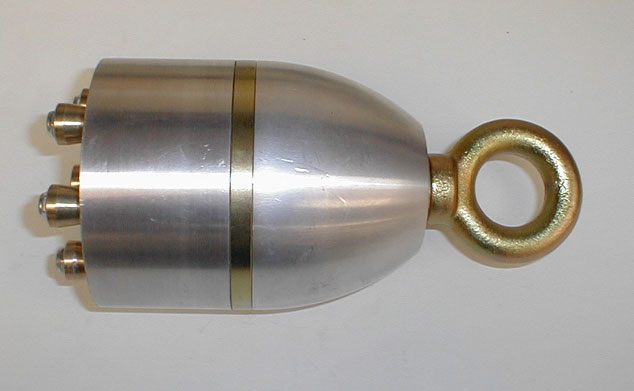

We've been designing and making
expanding towing heads for longer than anyone else.
Mudtight Gold is the best one we've ever made.
Designed to incorporate all the best
features of our previous designs with the addition of a
patented internal sealing system to keep contaminants
out of the pipe.
BENEFITS -
Quick and easy to fit.
Seals on the inside of the
pipe to keep the sleeve diameter to a minimum.
Accomodates a range of wall
thicknesses.
Excludes bentonite at high
pressure.
Tested at ultra high
pressures.
High tensile drop forged
eyebolts.
Standard rear
eye to retain the tail.
Size Table
IPS
Pipe Size
SDR
1 1/4"
9.33 to Sch D
1 1/2"
11 to Sch D
2"
9.33 to 21
4"
11 & 19
6"
11 & 17
1" 3" 5" 8" 10" 12"
Please
Call
Size Table
METRIC
Pipe Size
SDR
32
11 & 17
40
11 & 17
50
11 & 17
63
11 & 17
90
11 & 17
110
11 & 17
125
11 & 17
160
11 & 17
180
11 & 17
250
11 & 17
315
11 & 17
other sizes -
please call

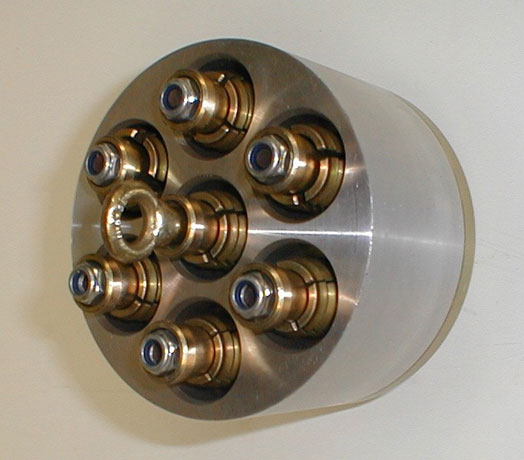

Following on from Mud-Tight
Gold is our new multi-duct puller. It shares all the
design features of Mud-Tight Gold but uses an aluminium
body to protect, grip and seal the pipes.
